T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera
T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera
T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera
T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera
T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera
T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera
Model
T51X-2810S

Item specifics

Probe Diameter(mm)
Φ2.8
Camera Pixels
300,000
Image Resolution
640×480
Video Resolution
640×480
DOF
3mm-50mm/5mm-80mm
FOV
120°
Viewing Direction
90° sideview
Light Source
Front ceramic light/ Rear-mounted optic fiber cold

Review

Description

T51X-2810S, 2.8mm Sideview Videoscope



Strong intelligent image processing system: with the functions of mage rotation, white balance, exposure control, negative film and zoom in & out, comparative measurement, it can meet all kinds of complicated inspection needs.


       White Balance: Auto white balance with strong color reduction; manual-control white balance according to inspection needs.



       Exposure Setting: exposure suppression--the polished object is also inspected clearly; exposure compensation--when checking

       large cavity, it can be more effective and clearer.



                       Normal Mode: HD image effect                                      Negative Film Mode: enhance the ability to compare and

                                                                                                             analyze the internal defects of the inspected object.



                                                                                  Support 8X zoom in/out

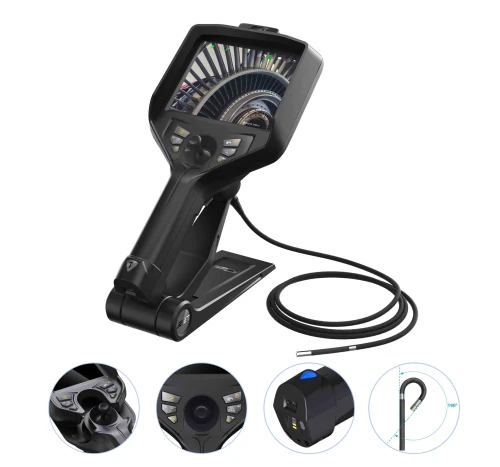

360 ° all-way articulation, damping type positioning design, precise probe locking technology, make the detection

more accurate and efficient. Independently developed technology of long distance transmission ensures bending

angle ≥100° , even the tube reaches to 10 meters.




High temperature alarm function: orange alarm when the temperature is above 65 ℃; red alarm and auto shutdown

when the temperature is more than 80 ℃.




Original dual battery design,8 hours working time, real-time battery display





Tube System

Probe   Diameter(mm)

Φ2.8


Camera Pixels

300,000


Image   Resolution

640×480


Video Resolution

640×480


DOF

3mm-50mm/5mm-80mm


FOV

120°

Viewing Direction

90° sideview

Light Source

Front ceramic light/ Rear-mounted optic fiber   cold

Illuminance

Maximum: 100000+Lx 1~9 levels adjustable light

Tube Length

1.5m/3.0m/5.0m/30m (customized for other   length)

Protecting   Device of Durability

42mm   buffer protection device between tube and handle

Articulation

2-way / 360° joystick-control articulation

Bending   Angle

Maximun:190°

Probe Positioning

Damping positioning & articulation lock   device

Wi-Fi   Transmission

Image   transmission to Mobile phone, computer by Wi-Fi(optional)

Monitor

System

Display

5.1" color IPS display, all sight viewing   angle, sunshade design

Display   Resolution

1280*960

Zoom In/Out

8X

Language

English / French / German / Spanish / Japanese /   Traditional Chinese / Simplified Chinese / Russian / Korean

White Balance Suppression

5 levels adjustable

White   Balance

Auto white   balance, automatically adjusts and eliminates speckles to achieve optimal   images.

Image Effect

Negative film/ black & white/standard

Temperature   Indication

High   temperature alarm (optional)

IP Level

Probe/tube: IP67

Software   Function

Playback,   image parameters adjust and rotate

Structure

Hand-held integrated design

Image/Video   Format

JPEG/MOV

Comparative   Measurement

Use   measuring probe and analog scale to compare and analyze the internal defect   and size of the inspected object.

Data Port

HDMI video output, Micro USB port with water   &dust proof device

Working   Time

≥8h

Battery Capacity

3.7V3200mAh×2

 Power   Charge

DC5V, 1A

Weight

≤0.8Kg

Compatibility

Interchangeable monitor and tube with different   diameters

Accessories

Standard   Configuration

Instrument   case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card:   1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set


For demonstration video, please visit the following links:


https://www.youtube.com/watch?v=1sg7Q8qndKQ
