JEET TJ Series Police Use Videoscope
JEET TJ Series  Police Use Videoscope
JEET TJ Series  Police Use Videoscope
JEET TJ Series  Police Use Videoscope
JEET TJ Series  Police Use Videoscope
JEET TJ Series  Police Use Videoscope
Model
TJ

Item specifics

Probe
Φ6.0
Image Resolution
640×480
Video Resolution
640×480
DOF(mm)
10-100mm/50mm-∞
FOV
90°/120°
Light Source
IR or IR & white dual lights
Illuminance
Maximun:100000Lx, 0~9levels
Tube Length
1.5m/3.0m/5.0m/10m (customized for other length)

Review

A***r
2021/7/30 01:40

Memuaskan

Description

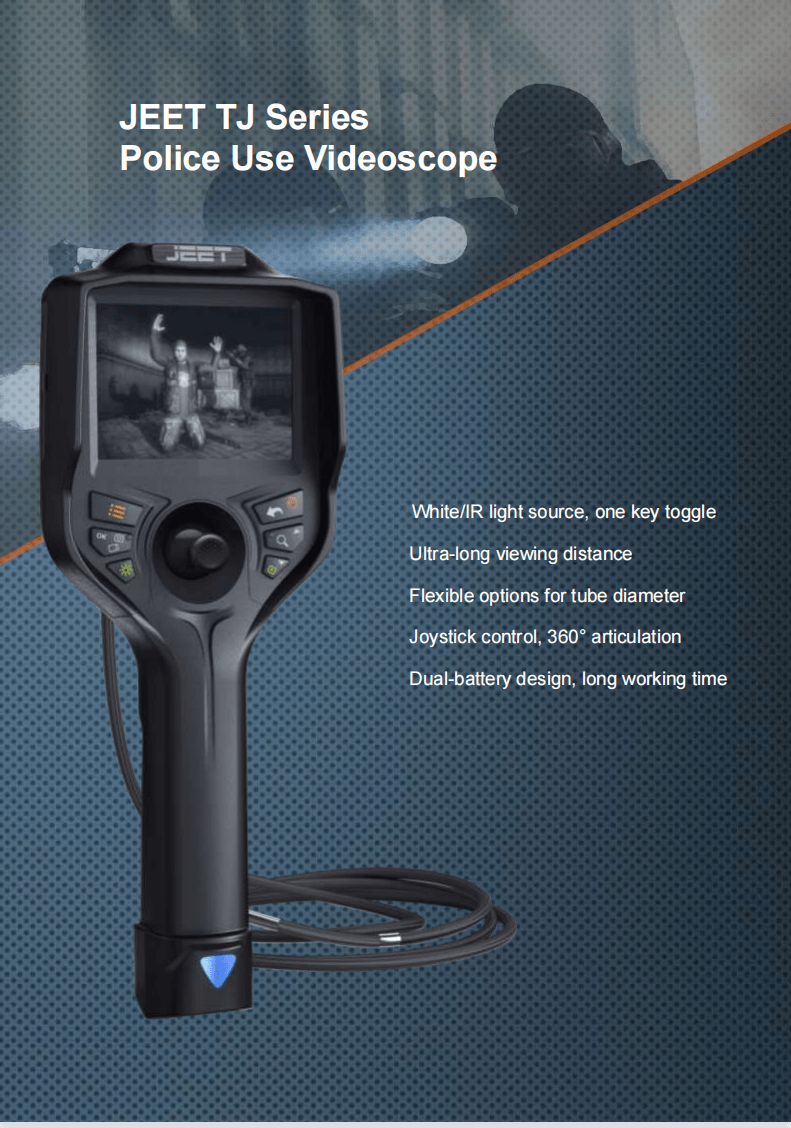

TJ Police Use Videoscope
Highlights:
1. White/IR light source, one key toggle
2. Ultra-long viewing distance
3. Flexible options for tube diameter
4. Joystick control, 360° articulation
5. Dual-battery design, long working time.
White/IR light source, one key toggle
Integrated design of IR & white dual light sources. Support one-key fast toggle.
Ultra long viewing distance
With the use of high-power rear-mounted IR light system, precision coupling technology as well as multi-mode lens group and nano coating technology, it realizes ultra-long viewing distance of more than 18 meters.






Interchangeable tubes

It is compatible with different diameter tubes from 1.6mm to6mm, suitble for various application occasions.
Interchangeable display
Independent module design of display and insert tube. Optional 3.5 inches and 5.7 inches displays.
360° accurate positioning
360 ° all-way articulation, damping type positioning design, precise probe locking technology, makes the detection more accurate and efficient.
Stretchable rod
It can be used for inspection on different objects, such as the bottom of a car, ceiling, etc.
Working time
Original design of dual battery mode, working time is more than 8h, real-time battery indication.
Output/WiFi
Image transmission by WiFi or HDMI output, displayed with HD screen.
Quality Assurance
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. We devote ourselves to providing High-quality and professional inspection instrument to every customer.
TJ Series Police Security Videoscope Parameters
Specification
Tube system
Probe
Φ6.0
Image Resolution
640×480
Video Resolution
640×480
DOFmm)
10-100mm/50mm-∞
FOV
90°/120°
Light Source
IR or IR & white dual lights
Illuminance
Maximun:100000Lx, 0~9levels
Tube Length
1.5m/3.0m/5.0m/10m (customized for other length)
Protecting Device of
Durability
42mm buffer protection device between tube and handle
Articulation
360° all-way
Bending Angle
Maximun:190°
Probe Positioning
Damping positioning & articulation lock device
WiFi Transmission
Image transmission to Mobile phone, computer by WiFi(optional)
Monitor
System
Display
3.5"/5.1" colorful TFT displayoptional: TP touch screen)
Zoom in/out
4X
Language
Chinese/ English/Russian and other 5 languages
Image mode
Thermal image
White Balance
Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images
IP Level
Probe/tube: IP67
Software Function
Playback, image parameters adjust and rotate
Structure
≥5 hours
Image/video format
3.7V,3200mAh×2
Scale
DC5V,Max current 1A
Data Port
Max 32G TF card
Working Time
Can replace/upgrade host , compatible with different pipeline probes.
Battery Capacity
1Kg
Power Charge
DC5V, 1A
Weight
0.55~0.8Kg
Compatibility
Replaceable monitor and tube with different diameters
Accessories
Standard
Configuration
Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc;
USB cable: 1pc; user manual: 1 set
